The planned availability of the various bands on the EVLA is
shown in Figure 1. No EVLA antennas have the VLA Ku (U) band (15
GHz) frequency available; installation of those on EVLA antennas
will begin in 2010. Note that until the VLA correlator is turned
off, due to hardware constraints the maximum number of available
antennas will gradually drop to 22. Further band-specific details
(as of June, 2009) are shown in Figures 2 and 3.

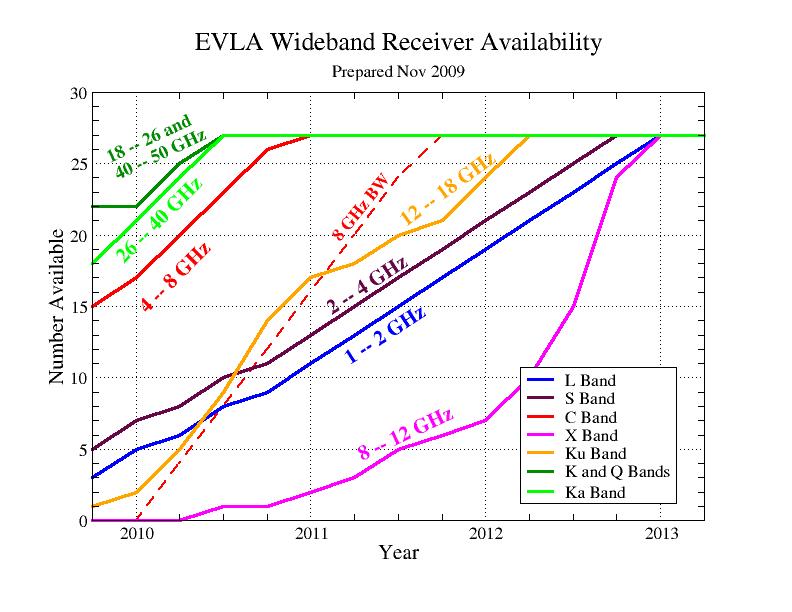

Figure 1 - An overview of EVLA band
availability as a function of time. The L- and C-band curves
reflect the planned installation of Ortho Mode Transducers (OMTs),
which will enable good polarization behavior outside the 'old' L and
C band ranges (1.25 - 1.75 GHz for L-band, and 4.5 - 5.0 GHz for
C-band).

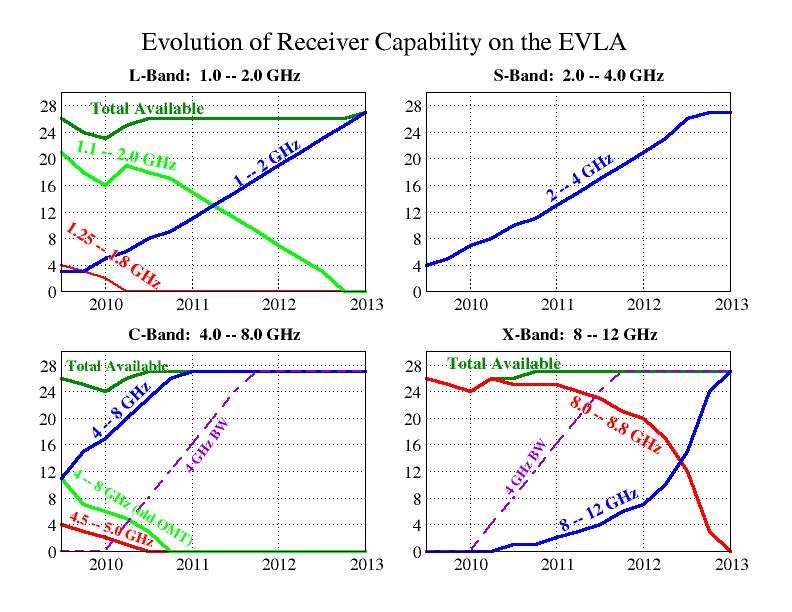

Figure 2 - EVLA L, S, C, and X band
availability as a function of time.

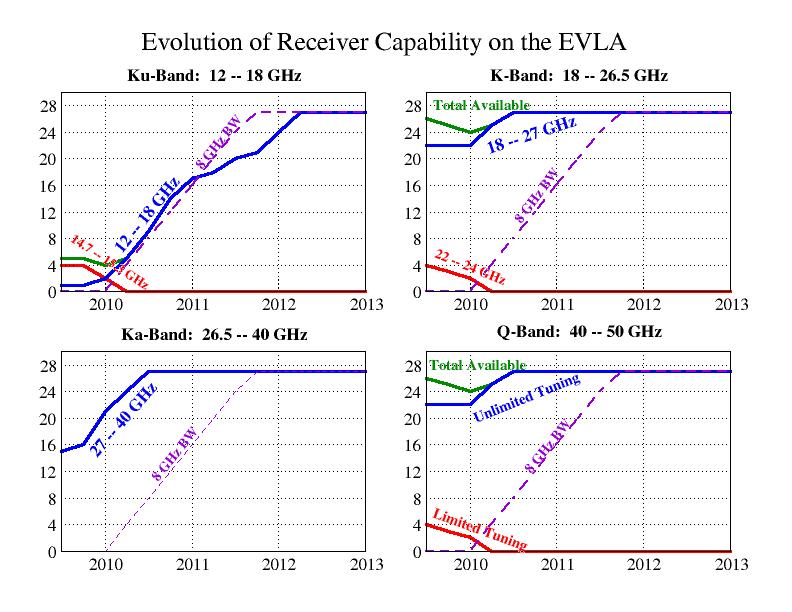

Figure 3 - EVLA Ku, K, Ka, and Q band
availability as a function of time.
|
