Installation of the new Ka-band receivers on EVLA antennas has
begun. See the relevant section for the
current status. Figures 1 and 2 show the effective Tsys
and the D-terms for a few selected antennas equipped with the new
receivers. Note that Ka-band specific models for amplitude
calibrators are not available yet, and models for K and Q band will
have to be used for the time being. More details can be found here.
Figure 1: Effective Tsys for three antennas
equipped with the new Ka-band receiver over its full frequency
range Figure 2: D-terms (in %) for three antennas equipped with the
new Ka-band receiver over its full frequency range
Modified on Tuesday, 29-Jan-2013 13:57:47 MST by Gustaaf
van Moorsel
National Radio

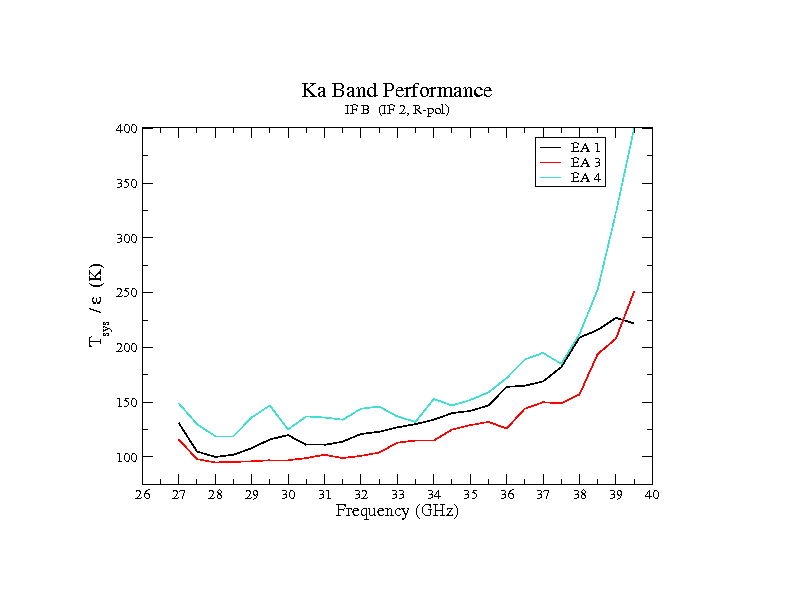

Figure 1: Effective Tsys for three antennas
equipped with the new Ka-band receiver over its full frequency
range

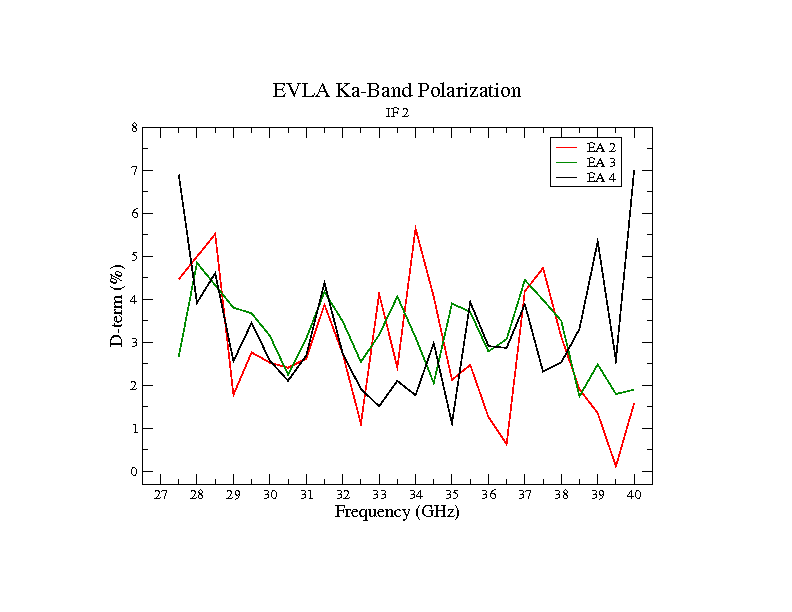

Figure 2: D-terms (in %) for three antennas equipped with the
new Ka-band receiver over its full frequency range
